How many solar panel clamp types do you know? 2025-08-08

Solar panel clamps are essential components in any PV mounting system, securing solar modules to rails or frames while ensuring structural stability under wind, snow, and other environmental loads.   Choosing the right solar mounting clamp can improve installation speed, reduce maintenance, and extend the system’s lifespan.


Below is an ultimate guide to 9 types of solar panel clamps, their features, applications, and advantages:


I. Traditional PV Rail Clamps

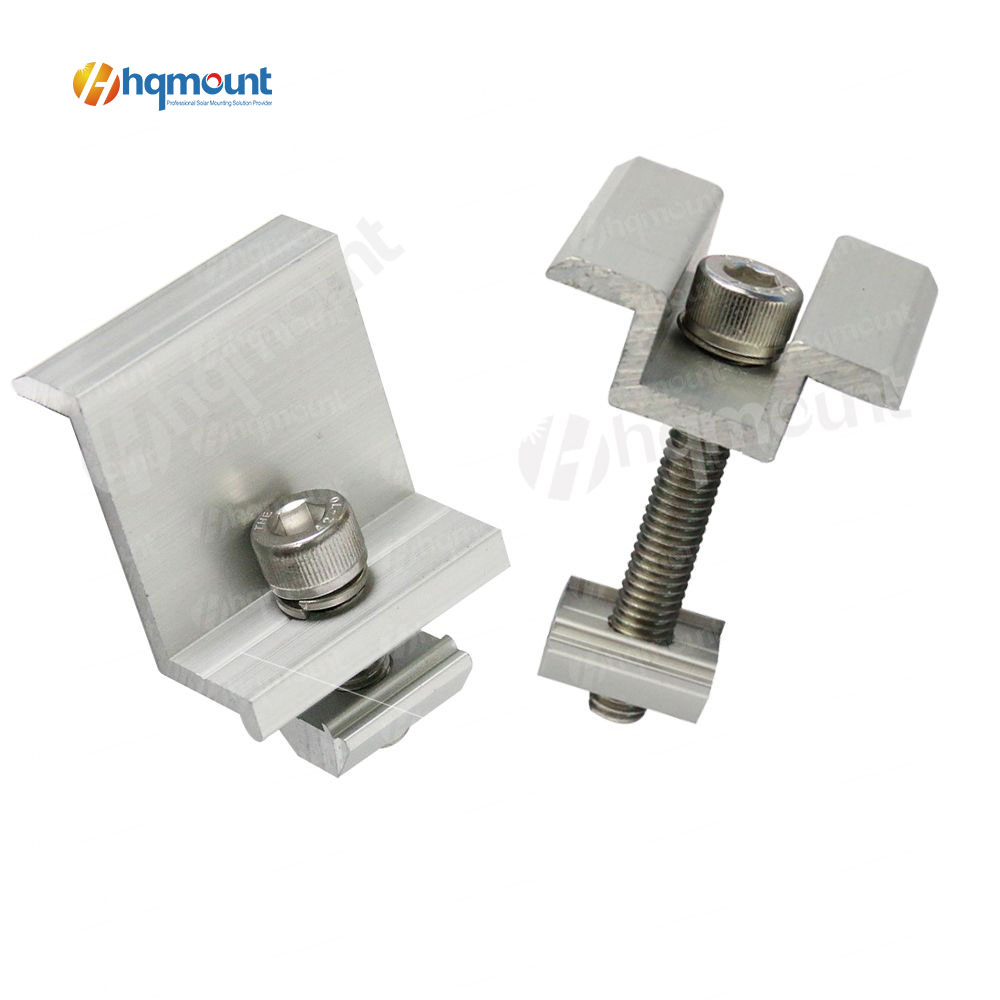

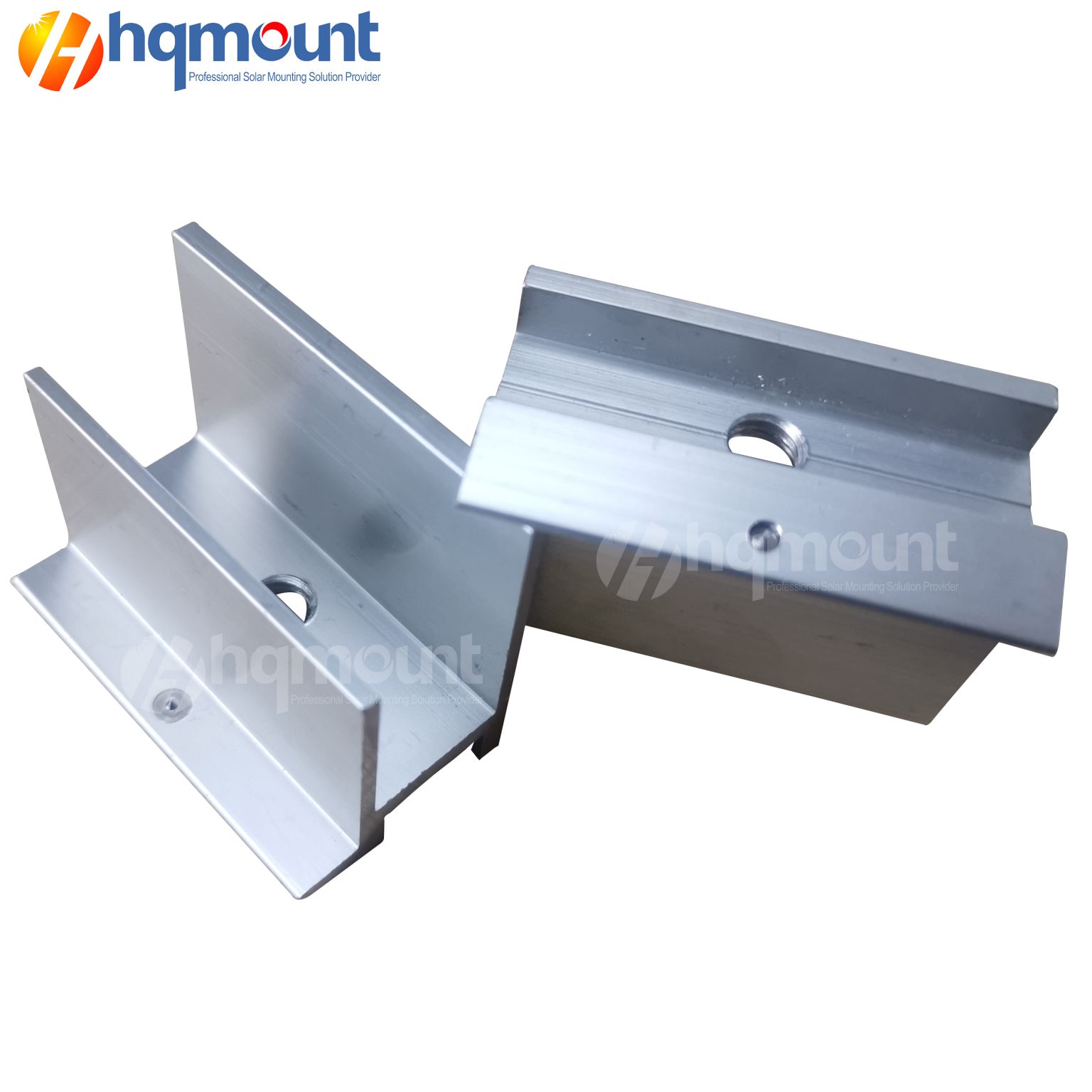

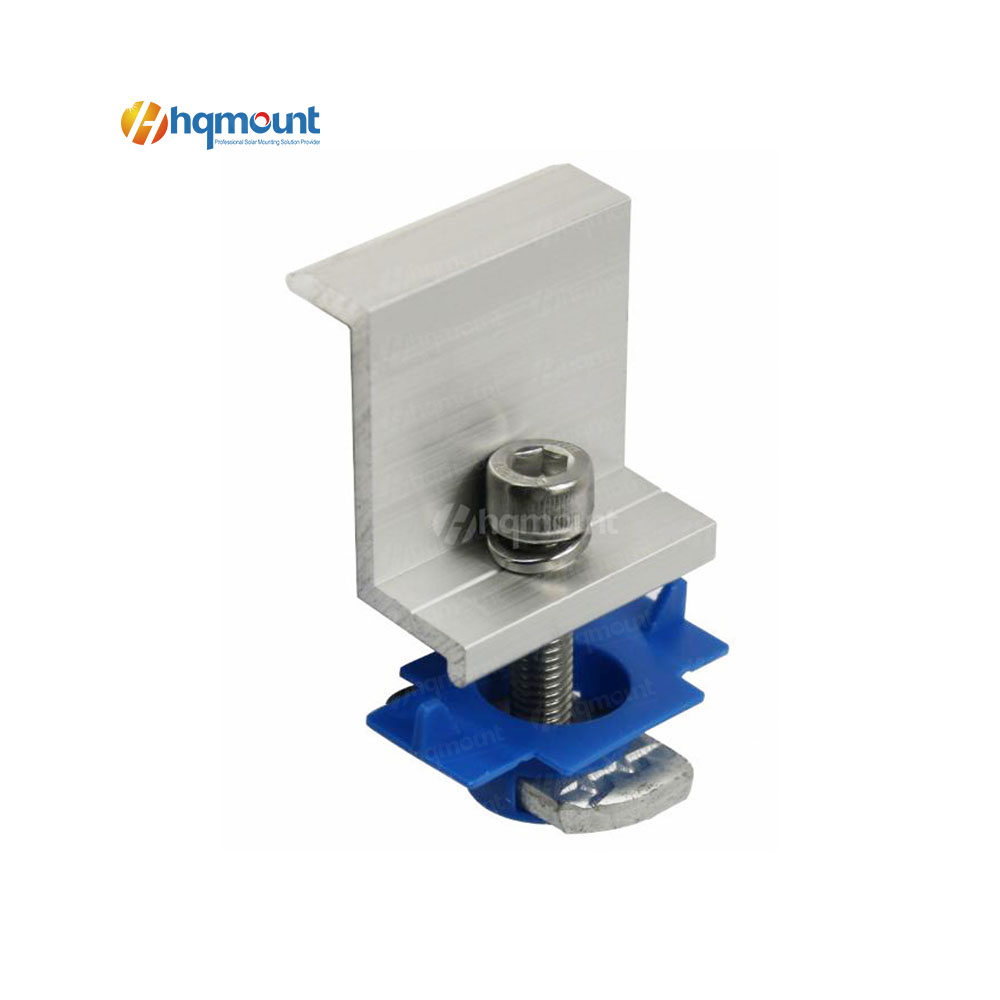

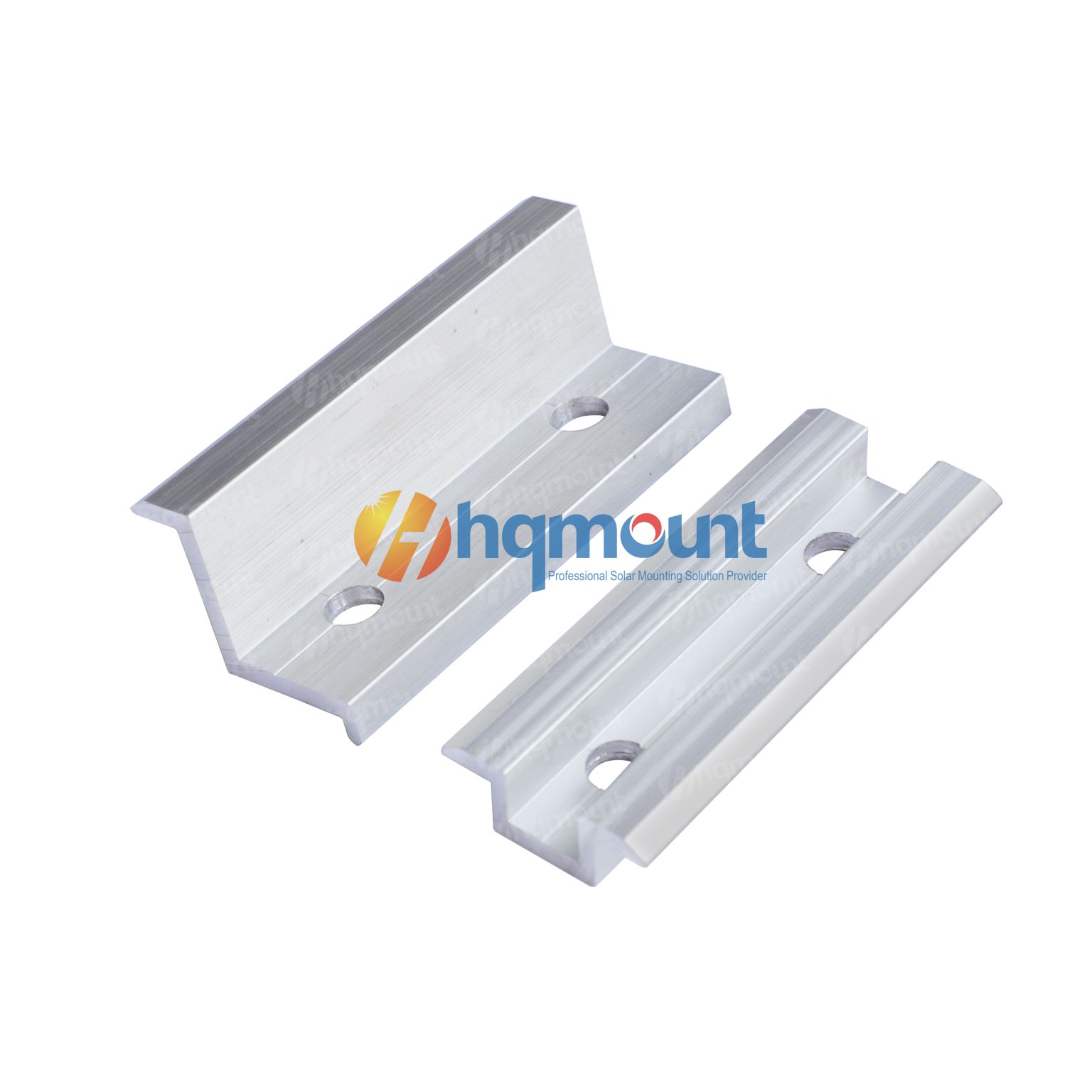

Aluminum PV Rail Clamps (40–50mm)

Short-length, cost-effective clamps for standard aluminum rails.

Ideal for: Solar Rooftop/ground-mount systems.

Key Spec: ≥3mm thickness (per TrinaSolar guidelines).

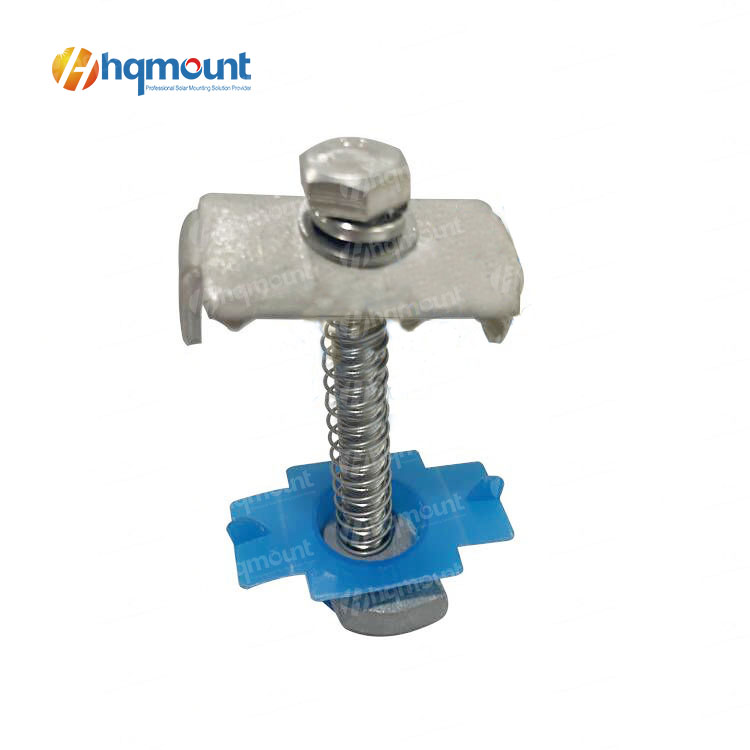

Steel Rail Mounting Clamps (Diamond/Flange Nuts)

Anti-vibration nuts prevent loosening under wind/snow loads.

Ideal for: Industrial projects requiring high rigidity.

Solar Panel Clamp


U-Channel Rail Clamps (80–100mm)

Paired with U-bolts for self-adjustment on uneven terrain.

Ideal for: Soil-deformation-prone sites (e.g., farmland).



II. Specialized Installation Clamps

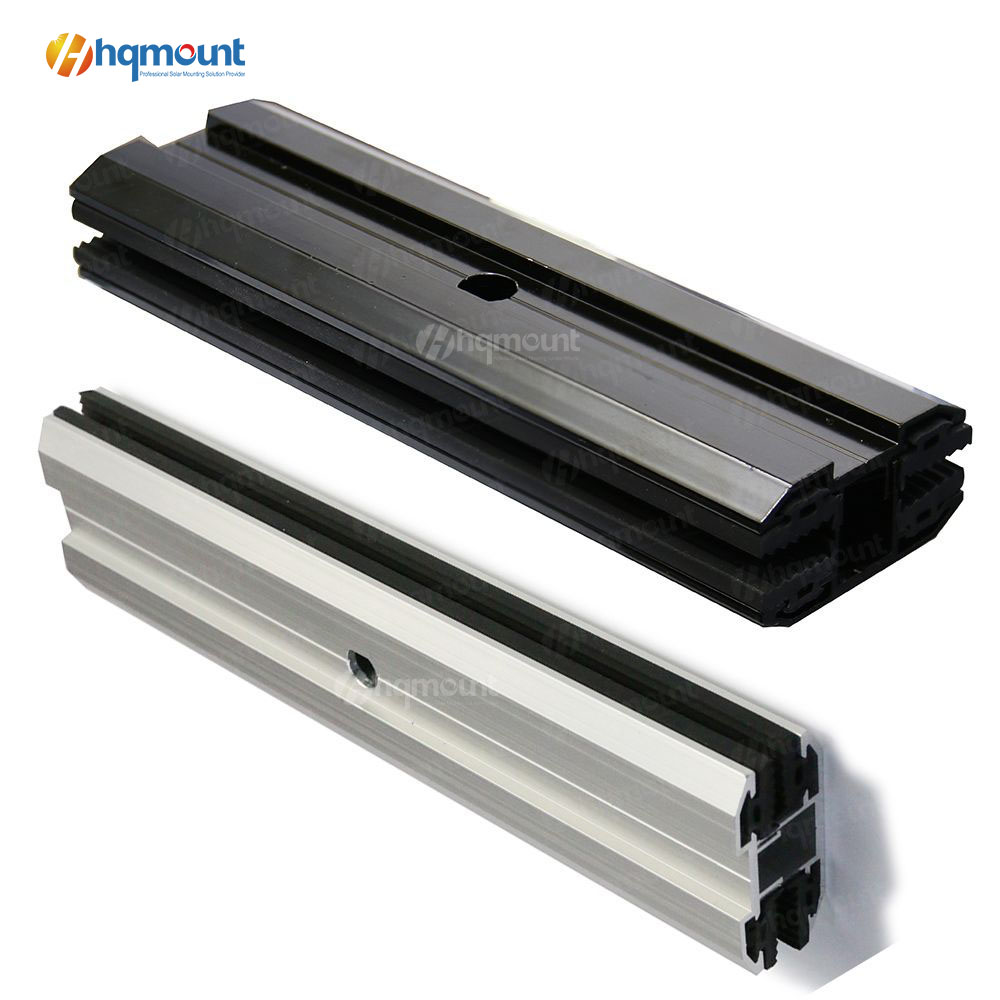

Thin-Film Clamps (Glass-Glass Panels)

Padded interfaces prevent stress cracks on frameless panels.

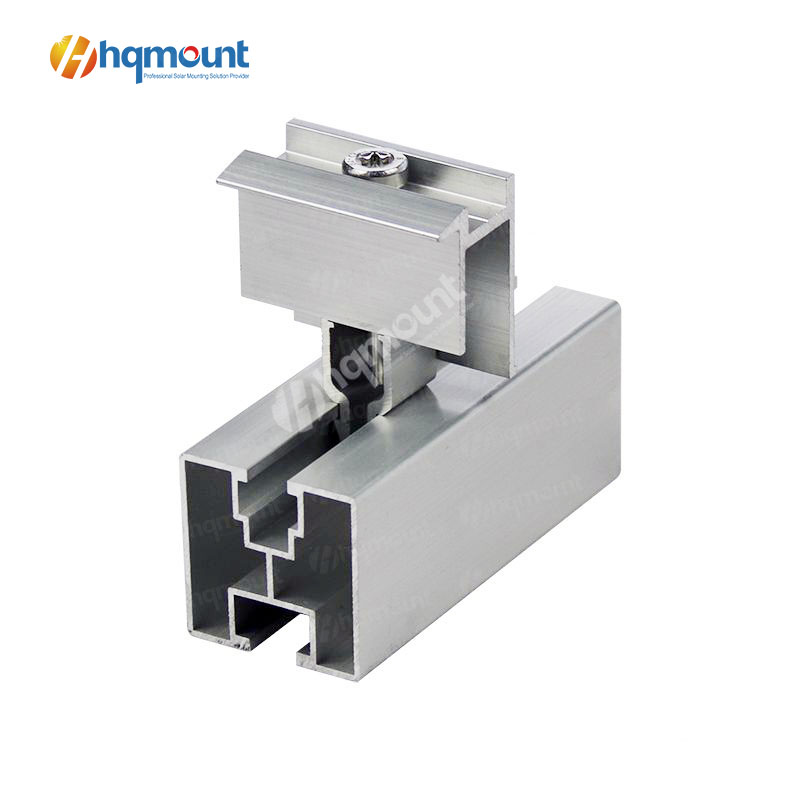

Rapid Clamps (40×40 Aluminum Rails)

Snap-on design → 30% faster installation.

HQ Mount System

Pre-assembled units for ultra-fast power plant deployment.

Commercial Value: Reduces labor costs in utility-scale projects.


III. Security & Niche Application Clamps

Anti-Theft Clamps (U Steel)

Tamper-proof bolts/locking mechanisms → theft deterrence.

Critical for: Remote ground-mount sites.

Z-Clamps (Boat Solar Panels)

Corrosion-resistant (marine-grade SS316) + compact design.

E-commerce Tip: Market as “Marine Solar Kits” (high-margin niche).

IV. Universal Upgrades

Black Anodized Finish: Seamlessly blends with black solar panels.

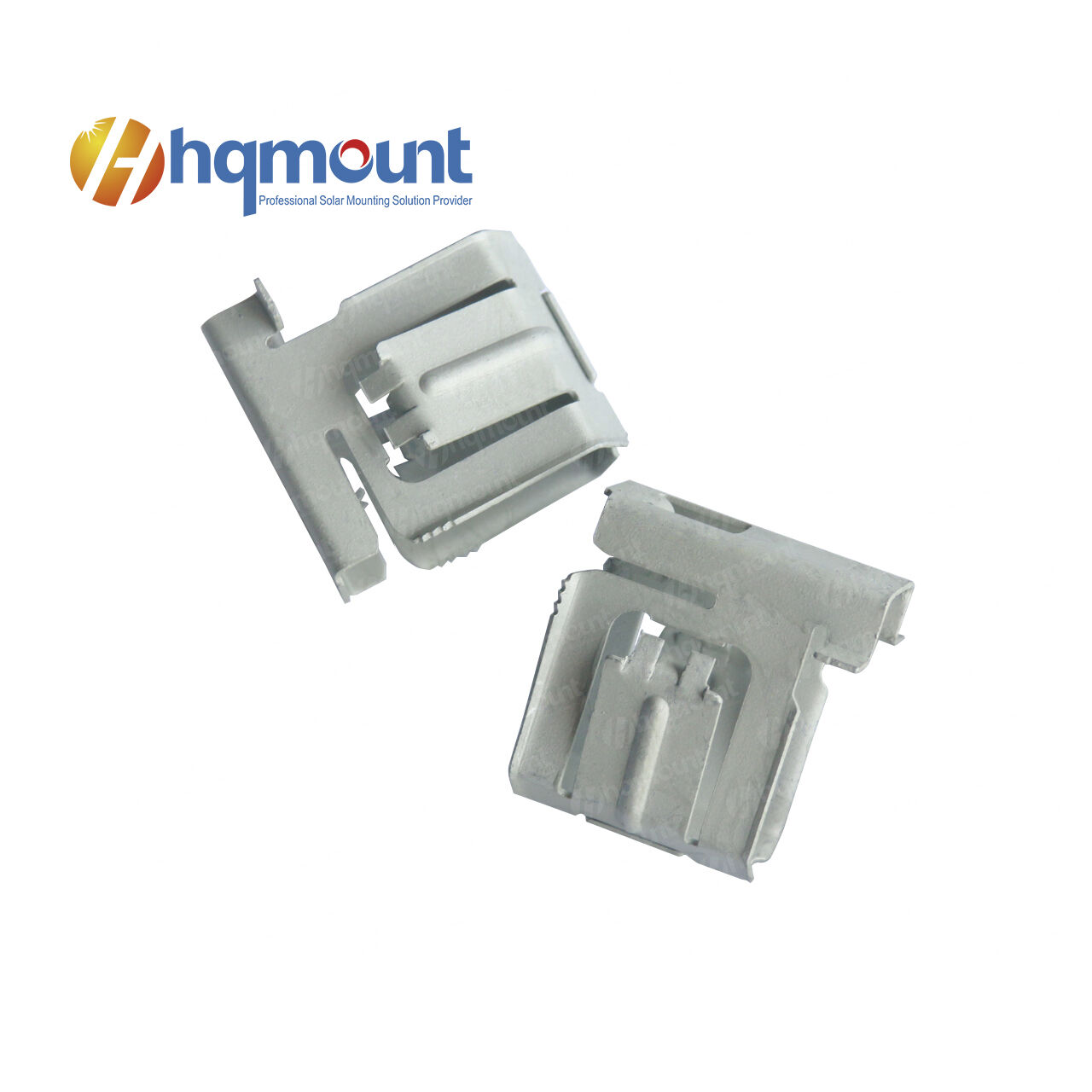

Integrated Grounding Pins: Built-in earthing

Conclusion
Choosing the right solar panel clamp is crucial for ensuring the safety, efficiency, and durability of your PV mounting system.   HQ Mount offers a complete range of aluminum clamps, steel clamps, rapid clamps, and custom clamp solutions to suit different installation needs and environments. Comment if you know other types~

Contact us at info@hqmount.com for detailed specifications, bulk pricing, or to request a free sample.
